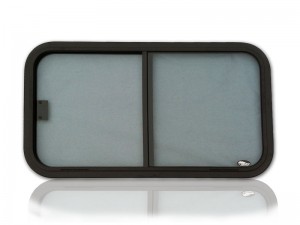

ECONOMY COMMERCIAL WINDOWS – TRIM RING – SERIES 1100

 Trailer Windows Replacement

Series-1100-300×225

For Use In:

  • Industrial Equipment
  • Trailers
  • Boat Cabin Windows
  • Mobile Office Units

The Series 1100 is a very durable clamp ring window. Solid tempered glass is available in either a single or double-sliding configurations. The fixed glass is glazed in high quality vinyl, and the slider mounts in a durable polyester lined channel. Ample face slots along the exterior face provide excellent drainage.
Our commitment to craftsmanship is unsurpassed. Every window we build is manufactured with superior materials providing optimum reliability and value. We work vigorously to set the standard in aluminum window manufacturing.

(Click link for Window Replacement Parts.)

Related: Series 1600, Series 900, Series 1800

Specifications:

  • Shapes: Rectangle, Parallelogram, Single Slope, T-Sliders, and others
  • Mounting: Trim Ring or Outside Flange Screw
  • Wall Thickness: 1/8″ to 2″
  • Radius: 2-1/2″, 3-0″
  • Frame Depth: 3/4″
  • Glass: 1/4″ tempered glass
  • Glass Tint: Clear, Light Green, Bronze, Light Grey, Dark Grey, Mirrored Bronze
  • Frame: Anodized Clear (Silver) or a selection of powder coat colors.
  • Optional Amenities: High Performance Powder Coated Frame Colors

Specification Sheet Printable Version
Installation Guide Printable Version


Glass Tints

Glass-Tints-21

Powdercoat

powdercoat-options


Economy Commercial Windows – Trim Ring – Series 1100

Anodized Clear Frame Anodized Clear Frame
Black Powder Coat Frame (Deep Textured Black w/ Matt Finish) Black Powder Coat Frame
White Powder Coat Frame (Smooth Texture w/ Semi-Gloss Finish) White Powder Coat Frame
Light Gray Powder Coat Frame (Smooth Texture w/ Semi-Gloss Finish) Light Gray Powder Coat Frame
Almond Powder Coat Frame (Smooth Texture w/ Semi-Gloss Finish) Almond Powder Coat Frame
Clear Tint Glass Clear
Light Green (Solex) Tint Glass Light Green (Solex)
Bronze Tint Glass Bronze
Light Gray Tint Glass Light Gray
Dark Gray Tint Glass Dark Gray
Solar Cool Bronze Tint Glass Solar Cool Bronze
Satin Etch Tint Glass Satin Etch
